6kv Blast Blower Steel Plant Three Phase Synchronous Motor IP55

جزئیات محصول:

Place of Origin:	China
نام تجاری:	THMotor
گواهی:	CE
Model Number:	TDMK400

پرداخت:

Minimum Order Quantity:	1set
قیمت:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

مخاطب

توضیحات محصول جزئیات

Product name:	T36000KW Large Scale Synchronous Motor For Blust Blower Steel Plant	Power Range:	400-15000kw
Voltage:	6kv	Speed range:	100, 125, 150, 167, 187.5, 200, 250, 300r/min
Poles:	60, 48, 40, 36, 32, 30, 24, 20	Frequency:	50hz,60hz
Cooling method:	IC01,IC37,IC81W	IP rate:	IP00, IP20, IP21, IP23, IP44, IP54, IP55
Standard:	IEC,GB
برجسته کردن:	6kv three phase synchronous motor,three phase synchronous motor IP55,6kv Blast Blower Steel Plant motor , three phase synchronous motor IP55 , 6kv Blast Blower Steel Plant motor

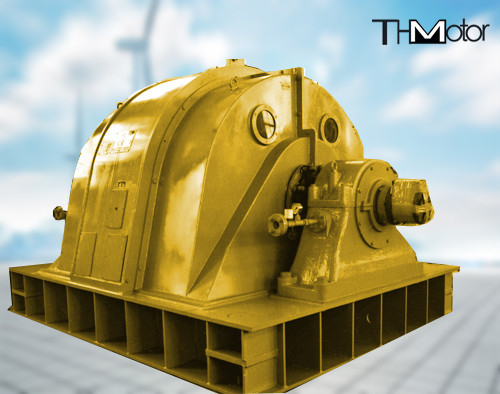

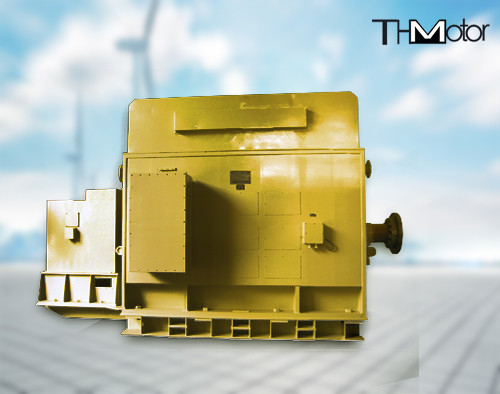

T36000KW Large Scale Synchronous Motor For Blust Blower Steel Plant

T series three phase synchronous motor

T series three-phase synchronous motors are suitable for driving fans, water pumps, motor-generator sets and other general machinery. The rated voltage of this series of motors is 10000V, which can be made 6000V according to user requirements. The rated power factor is 0.9 (leading). The motor is allowed to start directly at full voltage. When starting, the rotor circuit should be connected in series with a starting resistance 10 times the resistance of the field winding.
This series of motors complies with the relevant provisions of the national standard GB 755 "Rating and Performance of Rotating Electric Machines".

kW	A	%	Ist				V	A
kW	A	%	Ist	Tm	Mst	Tp	V	A
1800	200	96.4	5.55	1.74	1.79	1.12	36	250
2000	221.5	96.6	5.01	1.67	1.61	1.01	38	268
2200	244	96.6	4.55	1.61	1.46	0.92	44	288
2250	249	96.7	5.53	1.63	1.82	1.11	40	259
2500	276	96.7	4.98	1.57	1.64	1	47	281
2800	309	96.8	5.64	1.73	1.79	1.14	43	394
3200	353	97	5.45	1.9	1.57	1.03	38	380
3400	375	97.1	5.07	1.85	1.45	0.96	39	396
3700	408	96.9	6.01	1.88	1.84	1.18	40	367
3800	418.5	97.1	5.87	1.87	1.73	1.11	40	362
4000	441	97	5.58	1.82	1.64	1.05	45	378
4100	452	97	5.46	1.8	1.67	1.07	47	392
4200	462	97.1	5.37	1.76	1.57	1.09	57	379
4300	473	97.2	5.25	1.74	1.54	1.06	58	385
5000	549	97.4	5.36	1.72	1.58	1.09	64	391
5400	592	97.5	6.01	1.83	1.76	1.21	65	404
5500	603	97.5	5.91	1.82	1.73	1.19	65	409
5600	614	97.5	5.8	1.81	1.7	1.16	67	414
6000	658	97.6	5.41	1.76	1.59	1.09	70	435
6600	722.5	97.7	6.05	1.73	1.83	1.22	77	407
6800	744	97.7	5.87	1.71	1.77	1.18	78	415
7600	832	97.7	5.24	1.64	1.58	1.05	85	451
8000	876	97.6	4.99	1.59	1.53	1.01	86	445
8100	887	97.7	4.93	1.58	1.51	1	87	450
8400	919	97.7	4.76	1.57	1.45	0.96	90	463
12000	1311	97.8	5.03	1.43	1.31	1.08	108	424
