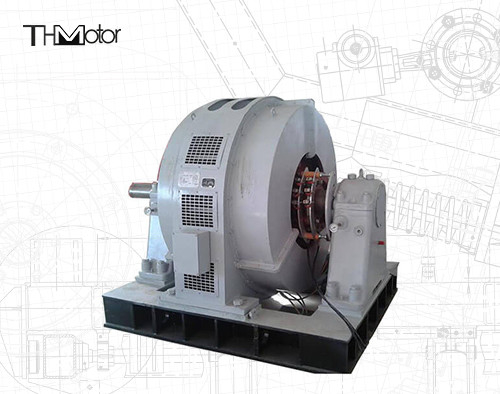

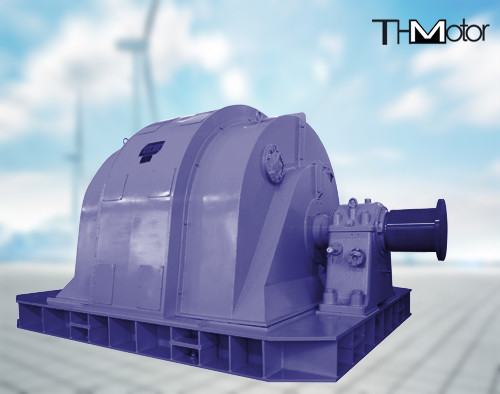

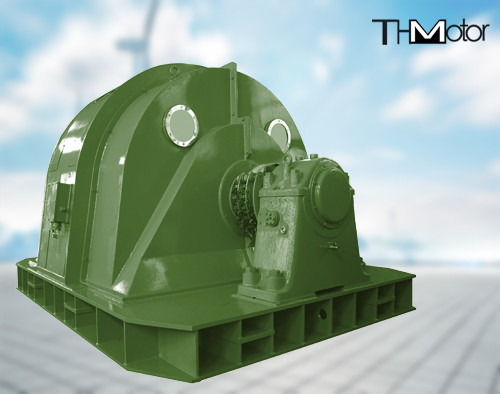

TDG Large Scale Synchronous Motor 6kv For Blast Blower Steel Plant

جزئیات محصول:

Place of Origin:	China
نام تجاری:	THMotor
گواهی:	CE
Model Number:	TDMK400

پرداخت:

Minimum Order Quantity:	1set
قیمت:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

مخاطب

توضیحات محصول جزئیات

Product name:	TDG 7800KW Large Scale Synchronous Motor For Blust Blower Steel Plant	Power Range:	400-15000kw
Voltage:	6kv	Speed range:	100, 125, 150, 167, 187.5, 200, 250, 300r/min
Poles:	60, 48, 40, 36, 32, 30, 24, 20	Frequency:	50hz,60hz
Cooling method:	IC01,IC37,IC81W	IP rate:	IP00, IP20, IP21, IP23, IP44, IP54, IP55
Standard:	IEC,GB
برجسته کردن:	TDG Large Scale Synchronous Motor,TDG Blast Blower Steel Plant Motor,Blast Blower Steel Plant Motor 6kv , TDG Blast Blower Steel Plant Motor , Blast Blower Steel Plant Motor 6kv

TDG 7800KW Large Scale Synchronous Motor For Blust Blower Steel Plant

Product overview

TDG series high-power synchronous motor is the special products matched with steel plants sintering fan, can be used to power huge moment of inertia of the mechanical load, such as blast furnace blower and air turbine compressor.

Motor speed is 1000r/min. Products with a reasonable structure, high efficiency, loss of torque, driving large inertia mechanical load and vibration of small, convenient installation and maintenance, and other notable features.

Technical requirements of the electric motor, without specific technical agreement, the rest are in line with the national standard GB755 of the fixed and rotating machinery performance and standards of the International Electrotechnical Commission IEC.

Electrical parts mechanical dimensions, tolerances are in accordance with standard GB1800-1804 and international standards committees ISO standards.

Asynchronous starting: when the starting mode is used, it must be voltage-reduced starting. When starting, make sure that the motor Terminal voltage between 0.6~0.7 times the rated voltage. Motor must match dedicated to the excitation devices, ensure the equipment investment and shunt excitation current strongly excited when at least 1.8 times the rated current of a multiple times.

Frequency-converted starting: when electric power is greater than 7000kW, the recommended frequency-converted starting and matching the corresponding private digital excitation devices.

Motor cooling methods for IC91W or IC81W, motor with air-water cooler, the installation type is IM7311 or IM1001, enclosure protection class IP44.Motor rotor for salient form, pole for the whole steel structure, high strength alloy steel bolt for pole and polar to ensure good contact and

can withstand mechanical stress generated during high-speed runs.

Technical data of TDG series high-power synchronous motor (10kV)

Product specifications

kW	A	EFF %	Ist /In	Tm /Tn	Mst /Mn	Tp /Tn	(Jext)kg.m2	V	A	IM
2000	222	96.2	6.5	2.01	1.85	1.4	4250	56	252	7311.01
2750	304	96.7	5.5	1.78	1.6	1.16	6500	59	276	7311.02
3300	364	96.9	5.84	1.75	1.71	1.24	9700	66	268	1001.02
3500	386	97	6.46	1.81	1.89	1.37	10500	69	262	7311.05
3600	397	97	6.28	1.79	1.84	1.33	10300	69	267	7311.05
4000	440	96.5	6.18	1.92	1.66	1.27	10500	78	258	7311.07
4200	462	96.5	5.88	1.87	1.58	1.21	11250	80	266	7311.07
4300	474	96.5	5.74	1.85	1.54	1.18	12500	81	269	7311.07
4600	506	96.5	5.37	1.79	1.44	1.11	14200	84	280	7311.07
5000	549	97.3	6.7	1.96	1.74	1.39	13500	91	268	7311.08
5300	582	97.3	6.33	1.91	1.64	1.31	13500	94	277	7311.08
6600	725	97.4	5.58	1.71	1.54	1.21	16250	109	344	7311.09
6900	758	97.3	5.34	1.68	1.47	1.16	17000	113	356	7311.09
7400	812	97.45	5.80	1.70	1.61	1.26	17000	120	344	7311.11
7800	855	97.5	5.51	1.66	1.52	1.2	/	124	357	7311.11
