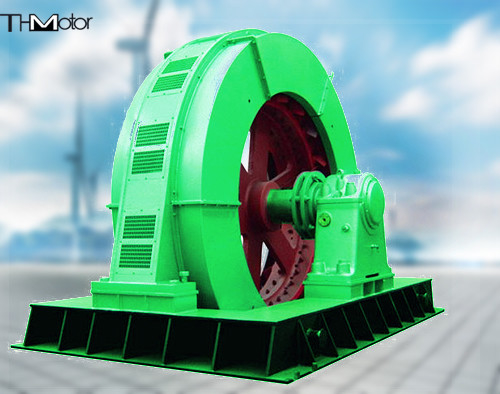

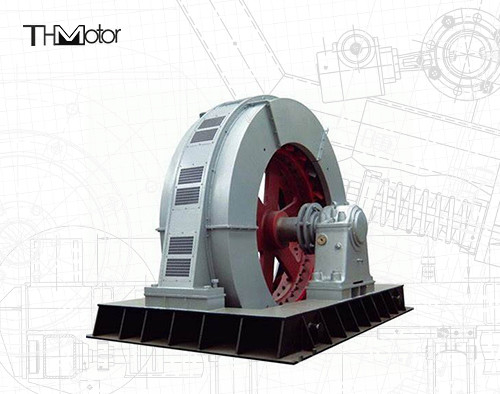

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv

جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: TDMK400
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling method: IC01,IC37,IC81W
IP rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
برجسته کردن:

Mining Mill brushless synchronous motor,Mining Mill AC Synchronous Motor,3ph AC Synchronous Motor 11kv

,

Mining Mill AC Synchronous Motor

,

3ph AC Synchronous Motor 11kv

TXZ Large Scale AC 3ph Brushless Synchronous Motor For Mining Mill





Product overview



The TXZ series large AC Three-phase Synchronous Motor for mining mill machine is the core driving machine for mining and cement industry,As this series (including TDMK series brush synchronous motor and TMW series brushless synchronous motor) has big starting torque feature,they are widely used in mining and cement industry, mainly used to drive low speed, high capacity machines like heavy duty ball mill, rod mill and coal mill etc.



TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 0

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 1



Product specifications



TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 2
Each series of motors

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 3



Our aftersales service

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 4



Product packaging

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 5



Certifications

TXZ Large Scale Mining Mill 3ph AC Brushless Synchronous Motor 11kv 6
