YKK high voltage electric motor 600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54

YKK high voltage electric motor 600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54

  • YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54
  • YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54
YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YKK-5000
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
product name: YKK Series HV Squirrel Cage Motor Power Range: 600-1000kw
Voltage: 3000v-10000v Speed range: 500RPM/590RPM/740RPM/990RPM/1500RPM/3000RPM
Frequency: 50hz,60hz Cooling method: IC611
IP rate: IP44/IP54 Standard: IEC,GB
Function: blowers, compressors, pumps, crushing, grinding mill......
برجسته کردن:

IP55 Synchronous compact marine generator,Fabricated steel Gas Turbine Generator,compact marine generator 155F

,

Fabricated steel Gas Turbine Generator

,

compact marine generator 155F

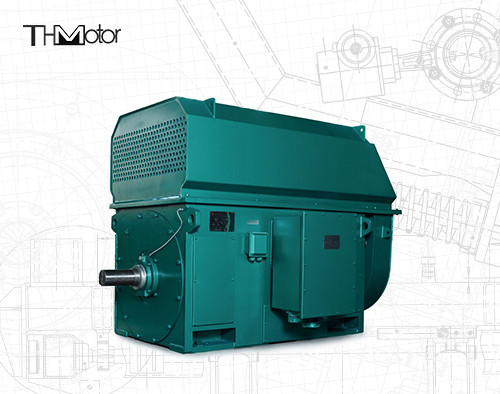

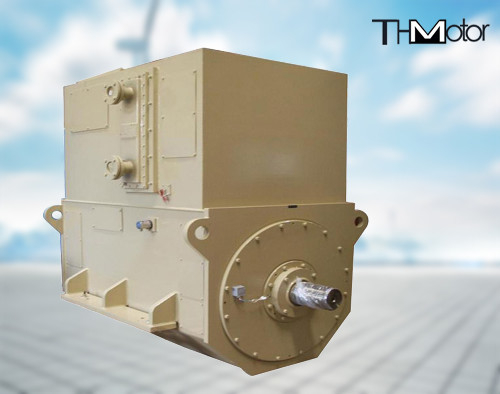

YKK Series HV Squirrel Cage Motor



Product overview



YKK-series (3kv, 6kv, 10kV) motor, is of closed squirrel-cage three phase asynchronous motor. The protection degree of the motor is of IP44/IP54 and the cooling method is of IC611. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

YKK series motor is design into box type construction. The frame is light in weight and good in rigid and it is made of steel plates by melding. Air-water cooler is fixed at the top of motor frame. It is convenient for replacement and maintenance. The stator of motor adopt for press construction. The winding of motor is for VPI impregnating, which ensure the reliable of the insulation, the mechanical stress and the capable of resistant humidity.

This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc. It can be serve as the prime movers in coal mines, mechanical industry, power plants and various industrial enterprises.



Product specifications



Frame size 500 - 630 Frame construction Fabricated steel
Number of poles 4 - 6 voltage 3000v-10000v
Power output 220kw - 2500KW Degree of protection IP44 IP54
Frequency 50hz,60hz cooling method IC611
Insulation Class F Synchronous Speed 1500r/min



Each series of motors

YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54 0



Our aftersales service

YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54 1



Product packaging

YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54 2



Certifications

YKK high voltage electric motor  600kw 700kw 800KW 10000V 2978rpm ac electric motor IP44 IP54 3
