YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor

YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor

  • YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor
  • YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor
  • YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor
YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: T 7000
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: YKS Series HV Squirrel Cage Motor Power Range: 200-6000kw
Voltage: 3kv-10kv Speed range: 1000rpm-1500rpm
Poles: 4,6 Frequency: 50hz,60hz
Cooling method: IC37,IC81W IP rate: IP44,IP54
برجسته کردن:

3 phase synchronous generator 1500rpm,TFW 3 phase synchronous generator,TFW brushless three phase synchronous generator

,

TFW 3 phase synchronous generator

,

TFW brushless three phase synchronous generator

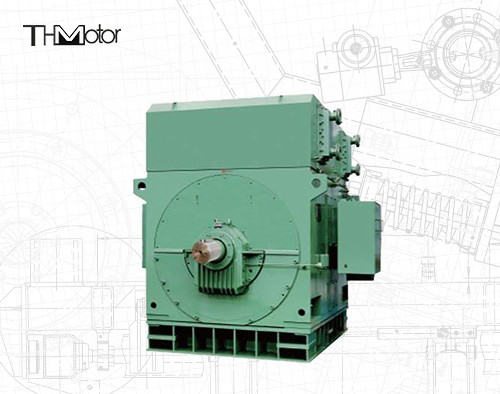

YKS Series HV Squirrel Cage Motor



Product overview



YKS-series (3kv, 6kv, 10kV) motor, is of squirrel-cage three phase asynchronous motor. The protection degree of the motor is of IP44/IP54 and the cooling method is of ICW81A. The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

YKS series motor is design into box type construction. The frame is light in weight and good in rigid and it is made of steel plates by melding. Air-water cooler is fixed at the top of frame with bolts and consists outside wind circuit in secondary cooling with water pump and water pool for motor, the primary cooling circulation is consisted of fan, cooler insider of motor.the primary cooling medium(air) can complete the heat exchange with secondary cooling medium in cooling pipe(circulation water) through outside surface of pipe in the cooler as well as spring, etc.

This motor is used to drive various mechanical equipment such as blowers, compressors, pumps, crushing, grinding mill, etc. It can be serve as the prime movers in coal mines, mechanical industry, power plants and various industrial enterprises.



Product specifications



PRODUCT NAME: YKS Series HV Squirrel Cage Motor POWER RANGE: 200-6000kw
VOLTAGE: 3kv-10kv SPEED RANGE: 1000rpm-1500rpm
Insulation Class F FREQUENCY: 50hz,60hz
COOLING METHOD: ICW81A IP RATE: IP44,IP54

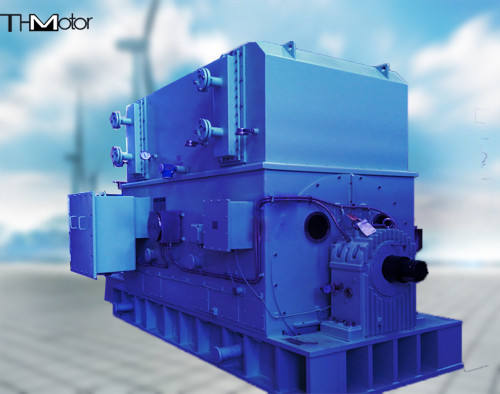

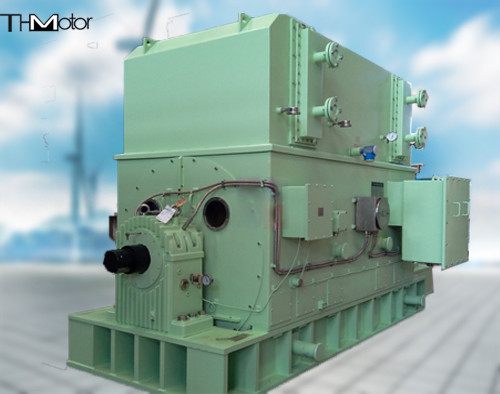

Each series of motors

YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor 0



Our aftersales service

YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor 1



Product packaging

YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor 2



Certifications

YKS 560KW 10000V 495rpm ac electric motor three phase asynchronous motor 3
