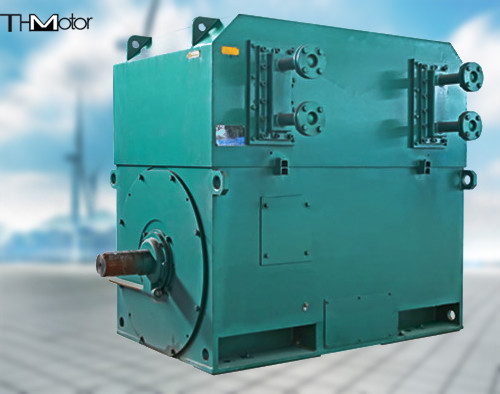

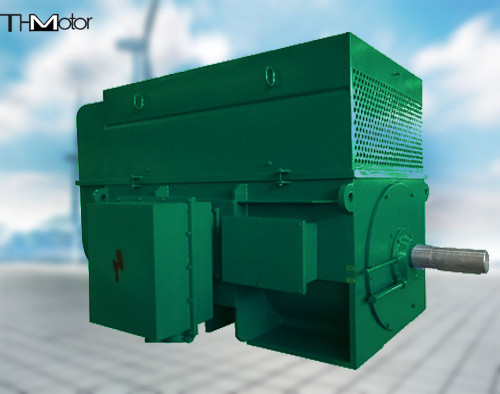

IEC GB Permanent Magnet Synchronous Motor Cement Bucket Elevator Motor IP55

TYDT Permanent Magnet Synchronous Motor For Bucket Elevators In Cement

Product overview

TYDT series permanent magnet direct drive motor is a special permanent magnet direct drive motor developed and manufactured by our company according to the load characteristics of elevators (bucket elevators) in the cement industry and combined with our company's first R&D technical achievements.
The frequency range of this type of motor is 5~25Hz; the rated voltage is 380V; the insulation grade is F; the cooling method used by the motor is natural air cooling; the motor protection grade is IP54; Provisions.
The motor is a permanent magnet direct drive motor with a hollow shaft natural cooling structure for bucket elevators, the world's first in the world!

Features
Installation method: IMB3;
Connection method: hollow shaft. Structural design concept: The large outer diameter structure removes the reducer, hydraulic coupler and auxiliary transmission device, and the motor is directly connected to the main shaft of the hoisting head wheel;
Start mode: frequency conversion control equipment realizes flexible start and stop;
Long-term constant torque operation under the rated frequency of the motor;
Temperature control protection: 2-point bearing temperature measurement, 6-point winding temperature measurement, (PT100);

Motor advantage
The center of gravity of the motor is closer to the hoist housing, and the system stability is higher;
Improve equipment reliability, eliminate oil leakage and other downtime problems caused by reducer and hydraulic coupling failures; eliminate the problem of system efficiency decline caused by the loss of transmission efficiency of the reducer itself;
Superior starting performance with material, flexible start and stop under heavy load;
The reliability of equipment operation is improved, the failure rate is reduced, and the service life of the equipment is prolonged;
Different conveying volume requirements can be realized by adjusting the motor speed, and the equipment operation is more energy-saving;

Product specifications
