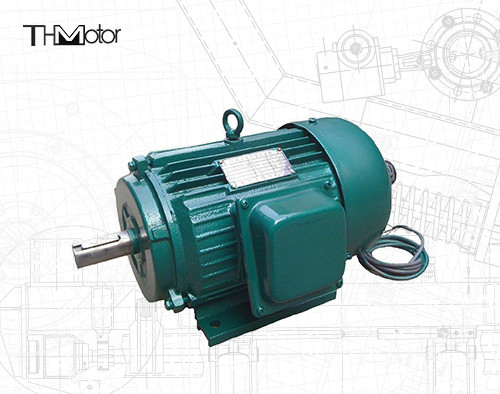

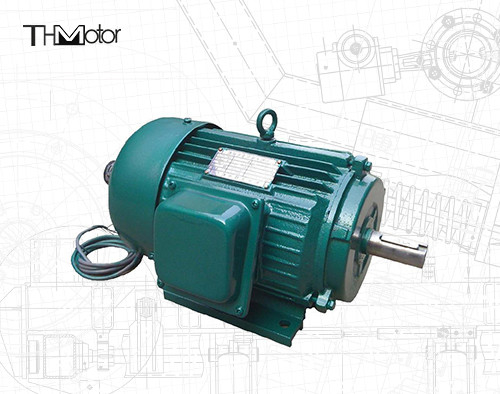

IEC GB Permanent Magnet Synchronous Motor

IEC GB Permanent Magnet Synchronous Motor

  • IEC GB Permanent Magnet Synchronous Motor
  • IEC GB Permanent Magnet Synchronous Motor
  • IEC GB Permanent Magnet Synchronous Motor
IEC GB Permanent Magnet Synchronous Motor
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: TDMK400
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Power Range: 400-15000kw Voltage: 3kv-11kv
Speed range: 100, 125, 150, 167, 187.5, 200, 250, 300r/min Poles: 60, 48, 40, 36, 32, 30, 24, 20
Frequency: 50hz,60hz Cooling method: IC01,IC37,IC81W
IP rate: IP00, IP20, IP21, IP23, IP44, IP54, IP55 Standard: IEC,GB
برجسته کردن:

IEC GB Permanent Magnet Synchronous Motor,15000kw Permanent Magnet Synchronous Motor,400kw Permanent Magnet Synchronous Motor

,

15000kw Permanent Magnet Synchronous Motor

,

400kw Permanent Magnet Synchronous Motor

TYCKK Permanent Magnet Synchronous Motor



Product overview


The products are widely used in electric power, metallurgy, chemical industry, building materials, water source treatment, coal mine, mining, textile, rubber, glass, petroleum, transportation, medicine, papermaking, food and other industries, helping enterprises to reduce emissions, save energy, reduce consumption and green production.



Structure and working principle of high-efficiency and energy-saving operation:
The stator structure of the high-voltage and high-efficiency asynchronous starting permanent magnet synchronous motor is similar to that of the ordinary Y series asynchronous motor. The company's R&D team adopts modern high-performance motor design theory and design technology to optimize the iron core and winding; the rotor is embedded with high-function rare earth "Magnetic King", and the squirrel cage structure is optimized, which can generate higher than ordinary asynchronous motors at rated voltage and rated frequency. starting torque.


Rare earth "Magnetic King" is recognized by the world as the permanent magnet material with the highest magnetic energy product in the world. After saturation magnetization, it presents a "permanent magnetic field". After the motor is installed, there is no need for the reactive excitation current of the power supply, the permanent magnetic field of the "magnet king", and the interaction with the three-phase current of the winding to generate stable electromagnetic torque to drive the load.


This structural feature of the permanent magnet motor makes the power factor high. Under the condition of ensuring the same output power, the current is significantly reduced, the resistance loss of the winding is reduced, there is basically no rotor loss during operation, and it exhibits remarkable high efficiency and energy saving characteristics. Due to the reduction of total loss, the temperature rise is more than 30K lower than that of ordinary asynchronous motors, and the operating life is extended. This is the basic working principle of an asynchronous start permanent magnet synchronous motor.

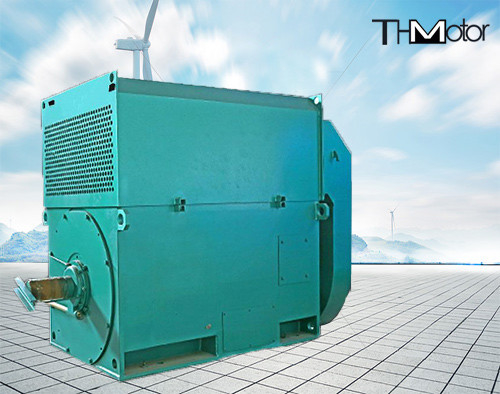

TYCKK series high-voltage high-efficiency asynchronous starting permanent magnet synchronous motor
The basic series are three-phase, 6KV, 10KV, 50HZ, air-to-air cooling, protection class IP54, F-class insulation, installation form IMB3, working system S1. It can meet the user's requirements for other protection levels, cooling methods, installation forms, etc.
Requirements for use: The altitude is below 1000 meters, and the ambient temperature is -15℃~+40℃.



Product specifications



POWER RANGE: 400-15000kw VOLTAGE: 3kv-11kv
SPEED RANGE: 100, 125, 150, 167, 187.5, 200, 250, 300r/min POLES: 60, 48, 40, 36, 32, 30, 24, 20
FREQUENCY: 50hz,60hz COOLING METHOD: IC01,IC37,IC81W
IP RATE: IP00, IP20, IP21, IP23, IP44, IP54, IP55 STANDARD: IEC,GB



Each series of motors

IEC GB Permanent Magnet Synchronous Motor 0



Our aftersales service

IEC GB Permanent Magnet Synchronous Motor 1



Product packaging

IEC GB Permanent Magnet Synchronous Motor 2



Certifications

IEC GB Permanent Magnet Synchronous Motor 3
