6300KW Brushless Exciter AC Synchronous Motor IP44 IP54 IP55

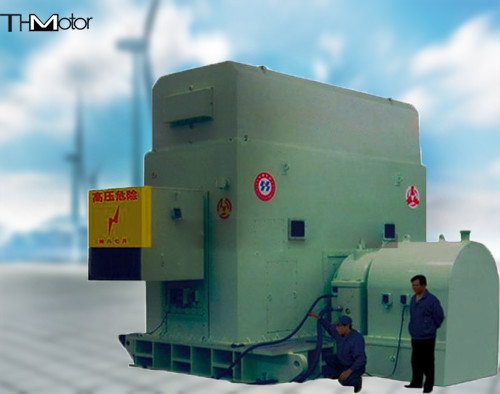

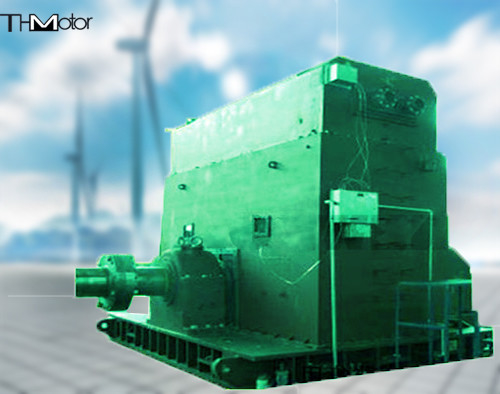

Taw 6300KW 16poles Increased Safety Type Brushless Excitation Synchronous Motor

TAW Series Increased Safety Type Brushless Excitation Synchronous Motor is a newly developed product to meet the demand of petroleum

industry,coal condensation industry and other applicable industries.

The development of TAW series is based on advanced technologies from various overseas companies, in combination with our fifty years of experience in manufacturing motors.

The TAW motor is to drive reciprocal compressor, and is applicable to equipment such as coal condensation facility, petro-chemistry hydrogenation facility etc..

Construction description :

Cooling Method: IC81W, the top of the motor is mounted with airwater

cooler.Protection Class: IP54 (the motor body);Mounting Type: IM7311 or IM7315

The motor adopts pedestal sliding bearing with pressed oil circulating lubrication facility.

The insulation class of the stator winding is F class, and the motor is treated with VPI.

The insulation class of the rotor winding is F class, and advanced technology from Siemens has been introduced to the insulation of the

damping winding to ensure sparkless starting.

Paramagnetic excitation can be achieved by applying the rotating excitation controlling module. The excitation system has the function

of pull out protection and automatic resynchronization.

The stator winding is equipped with six Pt100.

The motor is equipped with anti-condensation space heater to prevent the motor from moisture when it is out of operation.

The air-water cooler is equipped with water leak detector which will alarm when the water is leaking.
