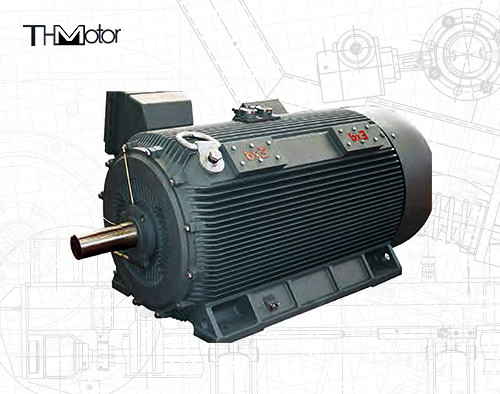

YJVFT Series Explosion-Proof Water-Cooled Variable Frequency Integrated Machine 800KW IP55





Product overview



The variable frequency integrated machine represents the perfect fusion of a mining frequency converter and a motor, making it an ideal solution for underground coal mine drive systems. This integration effectively addresses various on-site application issues associated with traditional mining frequency converters, providing enhanced efficiency and reliability in challenging environments.



Product specifications





Frame Size H355~H500
Power(kW) 400～1600kW
Poles(P) 4
Voltage(kV) 1.14～3.3
Frenquency(Hz) 50
Thermal Class 180(H)
Temperature Rise 135K
Ingress Protection IP55,IP56
Cooling Method IC3W67
Installation Method(IM) B10
Ex-mark Ex db I Mb
Vibration(mm/s) 2.3
