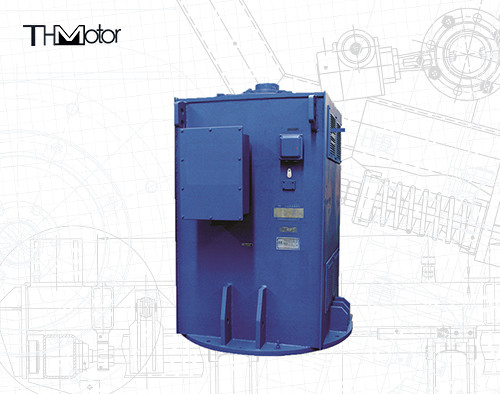

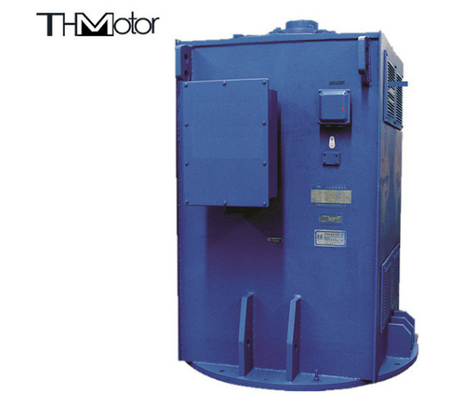

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611
3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611
3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YL560-2-6
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump Power Range: 220-2800kw
Voltage: 6000v-10000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical
برجسته کردن:

Circulating Pump Power Plant Asynchronous Motor,3600rpm Three Phase Asynchronous Motor,IC411 Three Phase Asynchronous Motor

,

3600rpm Three Phase Asynchronous Motor

,

IC411 Three Phase Asynchronous Motor

Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump



Product overview

This series of motors can be widely used to drive vertical machines and water pumps, such as circulating water pumps in power plants, condensate pumps and other types of water pumping stations. The axial thrust load of the motor can be selected according to customer requirements.


The YL Series Vertical Three-Phase Asynchronous Motor is designed and produced with advanced manufacturing technic comprehend from American Electric Corp and German LDW(LLOYD DYNAMOWERKE) ,which can be divided into YLKK and YLKS series to meet different cooling demands.



Product specifications



Power Range: 1400kw Rated Voltage: 6000v
Product Name: Vertical Asynchronous Motor  Speed: 100rpm-3600rpm
Frequency: 50hz,60hz IC Cooling Method: IC01,IC411,IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical


 for 6kv voltage/50hz

Frame 355 400 450 500 560 630
Power range kW 220~315 220~560 220~900 280~1400 500~2000 710~2800
Poles 4.6 4.6.8 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12


10kv voltage/ 50hz

Frame 450 500 560 630
Power range kW 315~630 280~1120 315~1600 560~2240
Poles 4.6 4.6.8.10 4.6.8.10.12 4.6.8.10.12


Remark: For the other special rated powers, please contact with us.
3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 03600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 1



Each series of motors

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 2



Our aftersales service

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 3

Product packaging

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 4



Certifications

3600rpm Three Phase Circulating Pump Power Plant Motor IC01 IC411 IC611 5
