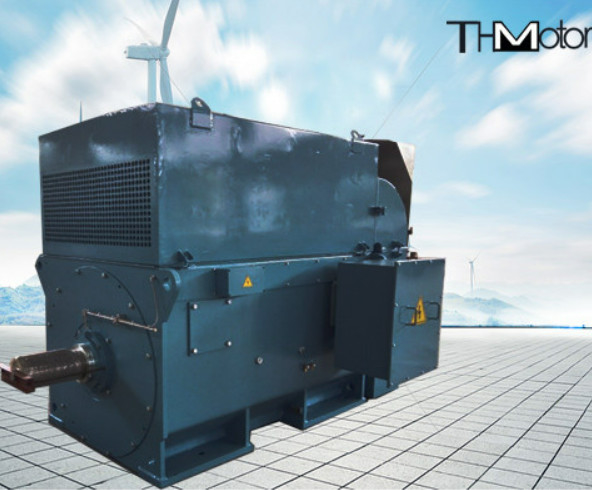

Y800 400kw to 6000kw Squirrel Cage High Voltage Electric Motors 1500r/Min 3600rpm

جزئیات محصول:

Place of Origin:	China
نام تجاری:	THMotor
گواهی:	CE
Model Number:	Y800-4

پرداخت:

Minimum Order Quantity:	1set
قیمت:	USD 20000-100000
Packaging Details:	Seaworthy packing
Delivery Time:	70DAYS
Supply Ability:	100SET/YEAR

مخاطب

توضیحات محصول جزئیات

Product name:	Y800 Large Squirrel Cage High Voltage Electric Motors Rolling Bearing	Power Range:	400-6000kw
Voltage:	6000v-11000v	Speed range:	100rpm-3600rpm
Frequency:	50hz,60hz	Cooling method:	IC01、IC411、IC611
IP rate:	IP23, IP54,IP55	Poles:	2,4,6,8,12,16
برجسته کردن:	Squirrel Cage High Voltage Electric Motors,1500r/Min High Voltage Electric Motors,High Voltage Electric Motors 3600rpm , 1500r/Min High Voltage Electric Motors , High Voltage Electric Motors 3600rpm

Y800 Large Squirrel Cage High Voltage Electric Motors Rolling Bearing

Product overview

This series of motors adopts F-class insulation structure, and the bearing structure is designed according to IP54 and IP64. H355～630 adopts grease lubrication, H710～1000 adopts sliding bearing forced thin oil lubrication.
The structure and installation type of this series of motors are IMB3, the ratings are based on continuous duty (S1), the rated frequency of the motor is 50Hz, and the rated voltage is 6KV and 10KV. agreed with the user.

Product specifications

data in different frame and RPM as below table

model	power (kW)	speed (r/min)	rated current (A)	efficient (%)	P,F	locked current	locked torque	Tm
Y710-6-4	2500	1500	175.2	95.8	0.86	7.0	0.5	1.8
Y710-7-4	2800		196.0	95.9
Y710-8-4	3150		220.3	96.0
Y710-9-4	3550		248.0	96.1
Y800-6-4	4000		275.9	96.2	0.87
Y800-7-4	4500		310.4	96.2
Y800-8-4	5000		344.5	96.3
Y800-9-4	5600		385.9	96.3
Y900-6-4	6300		433.7	96.4
Y900-7-4	7100		488.2	96.5
Y900-8-4	8000		549.5	96.6
Y1000-6-4	9000		577.5	96.7
Y1000-7-4	10000		685.5	96.8
Y710-6-6	2000	1000	140.6	95.5	0.86	6.5	0.6	1.8
Y710-7-6	2240		157.3	95.6
Y710-8-6	2500		175.4	95.7
Y800-6-6	2800		196.2	95.8
Y800-7-6	3150		220.5	95.9
Y800-8-6	3550		248.2	96.0
Y900-6-6	4000		279.4	96.1
Y900-7-6	4500		314.0	96.1
Y900-8-6	5000		344.9	96.2	0.87
Y900-9-6	5600		386.3	96.2
Y1000-6-6	6300		434.1	96.3
Y1000-7-6	7100		488.7	96.4
Y100-8-6	8000		550.1	96.5
Y710-6-8	1600	750	111.8	95.0	0.82	6.5	0.6	1.8
Y710-7-8	1800		128.5	95.1
Y710-8-8	2000		142.7	95.2
Y710-9-8	2240		159.6	95.3
Y800--6-8	2500		178.0	95.4	0.83
Y800-7-8	2800		199.1	95.5
Y900-6-8	3150		223.8	95.6
Y900-7-8	3550		251.9	95.7	0.84
Y1000-6-8	4000		280.3	95.8
Y1000-7-8	4500		315.0	95.9
Y1000-8-8	5000		349.6	96.0
Y710-6-10	1250	600	95.5	94.5	0.8	6.0	0.6	1.8
Y710-7-10	1400		106.8	94.6
Y710-8-10	1600		109.3	94.7
Y800-6-10	1800		135.3	94.8	0.81
Y800-7-10	2000		150.2	94.9
Y800-8-10	2240		168.0	95.0
Y900-6-10	2500		185.1	95.1	0.82
Y900-7-10	2800		207.1	95.2	0.82
Y1000-6-10	3150		229.9	95.3	0.83
Y1000-7-10	3550		258.8	95.4	0.83
Y1000-6-12	2500	500	190.3	94.8	0.8
Y1000-7-12	2800		212.9	94.9
Y1000-8-12	3150		239.3	95.0
Y1000-9-12	3550		269.4	95.1
Y710-1-4	3150	1500	361.8	96.3	0.87	6.5	0.5	1.8
Y710-2-4	3550		407.7	96.3
Y710-3-4	400		458.9	96.4
Y710-4-4	4500		516.9	96.4
Y800-1-4	5000		566.6	96.5	0.88
Y800-2-4	5600		634.6	96.5
Y800-3-4	6300		713.2	96.6
Y900-1-4	7100		802.9	96.7
Y900-2-4	8000		903.7	96.8
Y900-3-4	9000		1015.6	96.9
Y710-1-6	2240	1000	261.0	96.0	0.86	6.5	0.6	1.8
Y710-2-6	2500		291.1	96.1
Y710-3-6	2800		326.0	96.1
Y710-4-6	3150		366.4	96.2
Y800-1-6	3550		412.9	96.2
Y800-2-6	4000		465.3	96.3
Y800-3-6	4500		522.9	96.3
Y800-4-6	5000		580.4	96.4
Y900-1-6	5600		642.5	96.4	0.87
Y900-2-6	6300		722.1	96.5
Y900-3-6	7100		812.9	96.6
Y1000-1-6	8000		915.1	96.7
Y1000-2-6	9000		1028.4	96.8
Y1000-3-6	1000		1141.5	96.9
Y710-1-8	1800	750	213.6	95.4	0.85	6.5	0.6	1.8
Y710-2-8	2000		237.1	95.5
Y710-3-8	2240		265.3	95.6
Y800-1-8	2500		295.7	95.7
Y800-2-8	2800		330.9	95.8
Y800-3-8	3150		372.2	95.8
Y800-4-8	3550		419.1	95.9
Y900-1-8	4000		471.7	96.0	0.86
Y900-2-8	4500		514.0	96.1
Y900-3-8	5000		582.2	96.2
Y1000-1-8	5600		651.4	96.2
Y1000-2-8	6300		732.0	96.3
Y1000-3-8	7100		824.1	96.4
Y1000-4-8	8000		927.6	96.5
Y710-1-10	1600	600	195.3	96.0	0.83	6.0
Y710-2-10	1800	600	219.4	95.1	0.83	6.0
Y7103-10	2000	600	243.6	95.2	0.83	6.0	0.6	1.8
Y800-1-10	2240		272.5	95.3
Y800-2-10	2500		303.8	95.4
Y800-3-10	2800		339.9	95.5
Y900-1-10	3150		377.5	95.6	0.84
Y900-2-10	3550		425.0	95.7
Y900-3-10	4000		478.3	95.8
Y900-4-10	4500		538.1	95.8
1000-1-10	5000		597.3	95.9
Y1000-2-10	5600		668.9	95.9
Y1000-3-10	6300		751.8	96
Y1000-4-10	7100		847.2	96
Y710-1-12	1120	500	144.4	94.5	0.79	6.0	0.6	1.8
Y710-2-12	1250		161.0	94.6
Y710-3-12	1400		180.1	94.7
Y800-1-12	1600		203.2	94.7	0.80
Y800-2-12	1800		228.4	94.8
Y800-3-12	2000		253.5	94.9
Y800-4-12	2240		283.6	95.0
Y900-1-12	2500		312.0	95.2	0.81
Y900-2-12	2800		349.0	95.3
Y900-3-12	3150		392.3	95.4
Y1000-1-12	3550		441.6	95.5
Y1000-2-12	4000		497.1	95.6
Y1000-3-12	4500		559.2	95.6
Y1000-4-12	5000		620.7	95.7
Y710-1-16	630	375	89.2	93.1	0.73	6.0	0.6	1.8
Y710-2-16	710		100.3	93.3
Y710-3-16	800		112.9	93.4
Y710-4-16	900		126.9	93.5
Y800-1-16	1000		138.9	93.6	0.74
Y800-2-16	1120		155.4	93.7
Y800-3-16	1250		173.3	93.8
Y800-4-16	1400	375	193.9	93.9
Y900-1-16	1600		218.4	94.0	0.75	6.0	0.6	1.8
Y900-2-16	1800		245.4	94.1
Y900-3-16	2000		272.4	94.2
Y1000-1-16	2240		304.8	94.3
Y1000-2-16	2500		339.8	94.4
Y1000-3-16	2800		380.2	94.5
