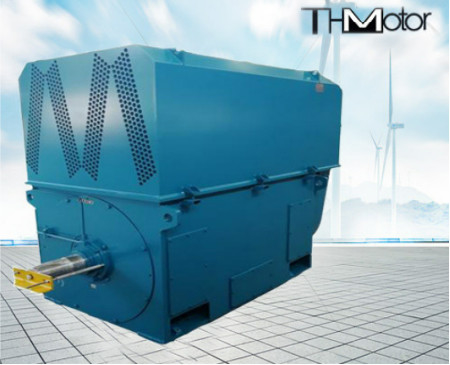

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower

جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YXKS3551-4
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: YXKS450 High Voltage AC Motor YKS high voltage induction motor for blower Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
برجسته کردن:

Asynchronous High Voltage Induction Motor,High Voltage Induction Motor 1500RPM,IC611 Asynchronous High Voltage Induction Motor

,

High Voltage Induction Motor 1500RPM

,

IC611 Asynchronous High Voltage Induction Motor

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower





Description



YX, YXKS.YXKK10kV series high-efficiency high-voltage three-phase asynchronous motors are the latest products of our company in the 21st century. We have accumulated more than 60 years of long-term experience in the design and manufacture of high-voltage three-phase asynchronous motors. The new generation of high-efficiency and energy-saving motor products developed can be interchanged with ordinary Y series high-voltage three-phase asynchronous motors, which can improve the operating efficiency of enterprises, save energy and reduce emissions.


The power level, installation size and tolerance of this series of motors comply with the national standard GB/T755, the International Electrotechnical Commission standard IEC34-1 and GB/T13957, and the machinery industry standard "B/T10446". In terms of electrical performance, the loss is reduced on the basis of the above-mentioned standards. 20%, and the energy efficiency level implements the level 2 energy efficiency of GB30254-2013.


According to GB/T4942.1 and IEC34-5 standard, the enclosure protection grade of this series of motors is IP23, IPw24, IP44 and P54. If the user requires other protection levels, they can be provided separately.
According to GB/T1993 and EC34-6 standards, the cooling methods of this series of motors are IC01IC81W, IC86W, IC611, IC616 and IC666. If the user requires other cooling methods, they can be provided separately.
The structure and installation type of this series of motors are MB3 (horizontal with feet), which conforms to the regulations of GB/T997 and EC347.



Specificaiton



Motor frame 500/630/710/800 IP Rate IP54/IP44/IP55
Power range 220kw - 2500KW,3500KW IC(cooling) IC611
Voltage 3KV, 6KV, 10KV Poles 2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation F
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%



Each series of motors

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower 0



Our aftersales service

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower 1



Product packaging

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower 2



Certifications

IC611 Asynchronous 1500RPM High Voltage Induction Motor 3 Phase For Blower 3
