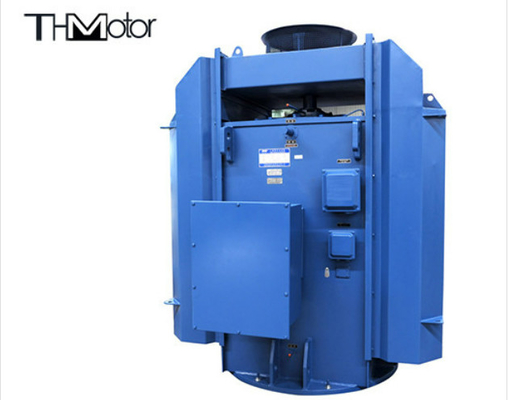

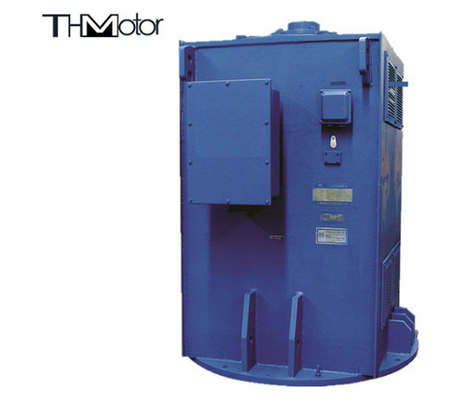

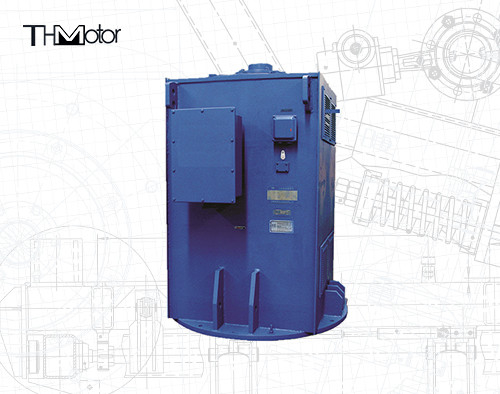

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54
2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54
2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YL560-2-6
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump Power Range: 220-2800kw
Voltage: 6000v-10000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical
برجسته کردن:

Vertical 3 phase asynchronous induction motor,3 phase asynchronous motor IP55,IP54 three phase asynchronous motors

,

3 phase asynchronous motor IP55

,

IP54 three phase asynchronous motors



Vertical Three Phase Asynchronous Motor Water Pump Power Plant Circulating Pump



Product overview



The YL Series Vertical Three-Phase Asynchronous Motor, The advanced manufacturing technology of Electric Corp and LDW (LLOYD DYNAMOWERKE) is adopted for design and production, which can be divided into YLKK and YLKS series to meet different cooling requirements.


This series motor can be widely used to drive vertical mounted machines and water pump, such as power plant circulating water pump, condensate pump, and other kinds of water pump station. Motor axial thrust load is optional as clients’ requirement.



Product specifications



Power Range: 1400kw Rated Voltage: 6000v
Product Name: Vertical Asynchronous Motor  Speed: 100rpm-3600rpm
Frequency: 50hz,60hz IC Cooling Method: IC01,IC411,IC611
IP Rate: IP23,IP44, IP54,IP55 Standard: IEC,GB
Poles: 2,4,6,8,12 Mounting: Vertical


  6kv voltage/50hz

Frame 355 400 450 500 560 630
Power range kW 220~315 220~560 220~900 280~1400 500~2000 710~2800
Poles 4.6 4.6.8 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12 4.6.8.10.12


10kv voltage/ 50hz

Frame 450 500 560 630
Power range kW 315~630 280~1120 315~1600 560~2240
Poles 4.6 4.6.8.10 4.6.8.10.12 4.6.8.10.12



Remark: For the other special rated powers, please contact with us.
2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54 0


Each series of motors

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54 1



Our aftersales service

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54 2



Product packaging

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54 3



Certifications

2800kw Vertical Mounted 3 Phase Asynchronous Induction Motors IP55 IP54 4
