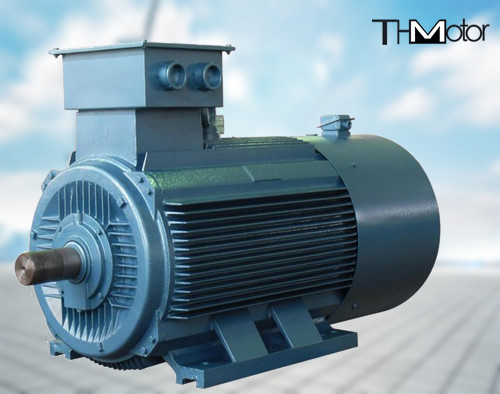

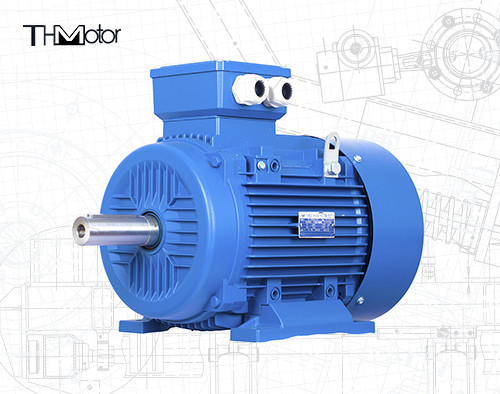

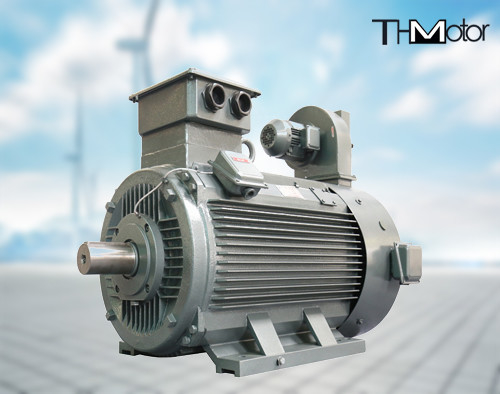

YSP Mining VFD Three Phase Asynchronous Motor 1000kw

YSP Mining VFD Three Phase Asynchronous Motor 1000kw

جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YSP5001-4
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: YSP Three Phase Asynchronous Motor 1000kw Variable Frequency(VFD) For Mining Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
برجسته کردن:

YSP Mining VFD Motor,Three Phase Asynchronous Motor 1000kw,Mining Three Phase Asynchronous Motor

,

Three Phase Asynchronous Motor 1000kw

,

Mining Three Phase Asynchronous Motor

YSP Three Phase Asynchronous Motor 1000kw Variable Frequency(VFD) For Mining



Product overview



YSP series variable frequency speed regulation three-phase asynchronous motor is a variable frequency speed regulation three-phase asynchronous motor with inverter as the power supply. By changing the frequency of the power supply, the speed of the motor can be smoothly adjusted to achieve the purpose of energy saving and control automation.



Continuous rating based on continuous duty (S1), and its voltages are: 6kV, 10kV, rated frequency 50Hz, continuous speed regulation within the range of 30-50Hz for fans and water pumps, cooling methods include IC01, IC81W, IC611, etc.; other loads can be continuous within the range of 5~50. The motor is equipped with an independent strong air cooling system, and the cooling method is 1C06 , IC86W, IC666, etc.

This series of motors can be used to drive various general machinery such as compressors, ventilators, water pumps, cutting machine tools, transportation machinery and other machinery as prime movers in various industrial and mining enterprises such as mining, machinery, petrochemical industries, and power plants.



Product specifications



frame size 355/500/630/710/800/1000 IP rage IP54/IP44/IP55
Rated Power 160kw - 2500KW,3500KW Cooling Method IC IC611
Rated Voltage 3KV, 6KV, 10KV Poles  2,4,6,8,10,12
Frequency 50HZ/60HZ Insulation class F;H
Speed range 500/590/740/990/1500/3000RPM MOTOR Efficiency 84-94.5%
P.F. 0.84-0.85 AT -15-40℃
Installation IMB3,IMB5,IMB35 Standard IEC, GB



Each series of motors

YSP Mining VFD Three Phase Asynchronous Motor 1000kw 0



Our aftersales service

YSP Mining VFD Three Phase Asynchronous Motor 1000kw 1



Product packaging

YSP Mining VFD Three Phase Asynchronous Motor 1000kw 2



Certifications

YSP Mining VFD Three Phase Asynchronous Motor 1000kw 3
