YKK800 YKK630 400kw to 6000kw Large Synchronous Squirrel Cage Motors EC DNV GB

Ykk800 Ykk630 large scale Three Phase Asynchronous Motor

Product overview

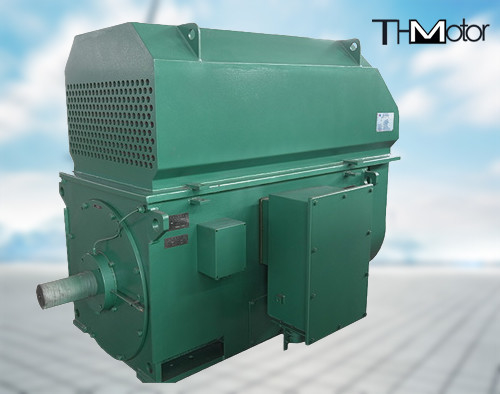

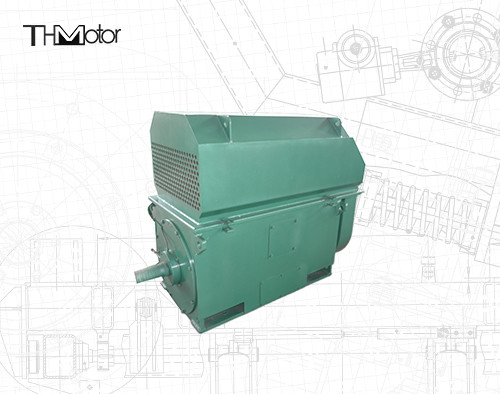

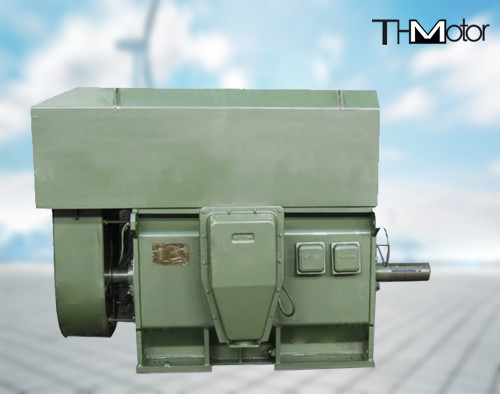

This series of products are made of steel plates welded into a box-type structure, which is light in weight and has good rigidity; the top is equipped with a closed air-air cooler, which is easy to maintain; the stator adopts a press-fit structure, the stator winding is F-class insulation, VPI dipping paint, and the insulation performance is excellent and reliable. , Good mechanical strength, strong moisture resistance; the basic form is IP44 protection grade, and can be made into IP55 grade according to requirements.
Product Specifications

Model: YKK 355-630
Standard: IEC
Efficiency Index: Standard
Frame range: 355-630(3KV, 6KV); 400~630(10KV) steel frame
Power range: 160～1600kw;
Voltage: 3KV, 6KV,, 10KV
Frequency: 50Hz, 60Hz
Number of poles: 2 4 6 8 10 poles
Protection class: IP55
Cooling method: IC611
Bearings: SKF or C&U
Ambient temperature: -15℃ ~ 40℃
Installation method: B3 right auxiliary junction box is on the same side of the main junction box
Auxiliary elements: 2xPT100 per winding; 1xPT100 per bearing; heating tape
Surface color: RAL 5010
Main applications: General machinery and equipment such as fans, pumps, compressors, belt conveyors, etc.
