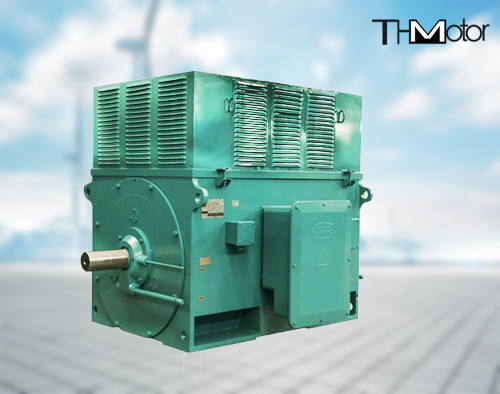

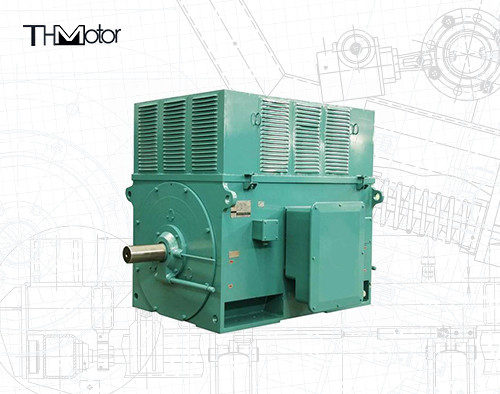

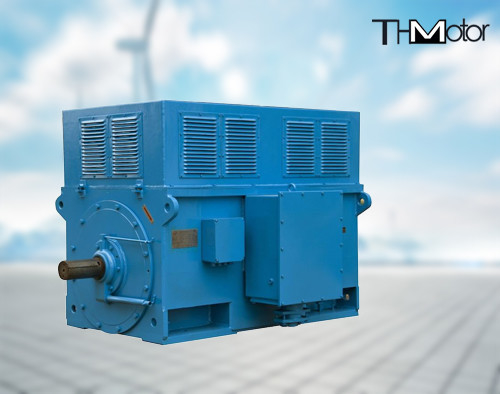

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm

جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: Y800-4
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 20000-100000
Packaging Details: Seaworthy packing
Delivery Time: 70DAYS
Supply Ability: 100SET/YEAR
مخاطب
توضیحات محصول جزئیات
Product name: YP630-6 1400kw Induction Motor Variable Frequency High-Voltage Asynchronous Motors Power Range: 400-6000kw
Voltage: 6000v-11000v Speed range: 100rpm-3600rpm
Frequency: 50hz,60hz Cooling method: IC01、IC411、IC611
IP rate: IP23, IP54,IP55 Poles: 2,4,6,8,12,16
برجسته کردن:

1400kw electric induction motor,electric induction motor 3600rpm,1400kw High Voltage Electric Motors

,

electric induction motor 3600rpm

,

1400kw High Voltage Electric Motors

YP630-6 1400kw Induction Motor Variable Frequency High-Voltage Asynchronous Motors



Product overview



YP series motor is a new type of variable frequency speed regulating motor independently developed by our company according to the needs of domestic and foreign markets. Its design and manufacturing process are in line with relevant national and industry standards. The electrical performance and installation dimensions also conform to the national standard GB755 and the IEC standard of the International Electrotechnical Commission. This series of motors can be continuously adjusted in speed within the range of 5-67Hz, that is, constant torque operation within 5-50Hz, and constant power operation within 50-67Hz.


YP series is the basic series, which generally has the advantages of high efficiency and energy saving, low noise, small vibration, wide speed regulation range, high precision and reliable quality, convenient installation, use and maintenance.



YP high-voltage variable frequency speed regulation three-phase asynchronous motors can drive various general machinery such as compressors, fans, water pumps, cutting machine tools, transportation machinery and other machinery, and are widely used in power plants, water plants, petrochemicals, mining and other industrial and mining enterprises. As the prime mover.



Product specifications



Frequency range:

constant torque: 5~50Hz
constant power: 50~67Hz
frame(center high) 355/500/630/710/800/1000 IP  IP54/IP44/IP55
Rated Power 100kw - 10000KW Cooling Method IC611
Voltage 380-11000v Poles3 2,4,6,8,10,12
Speed 500/590/740/990/1500/3000RPM Efficiency 84-94.5%
P.F. 0.84-0.85 AT -15-40℃
Material cast iron
IM horizontal
Standards

IEC, DNV, GB



Each series of motors

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm 0



Our aftersales service

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm 1



Product packaging

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm 2



Certifications

1400kw High Voltage Electric Induction Motors Three Phase Asynchronous Motor 100rpm-3600rpm 3
