IMB3 IMB35 Three Phase General Electric Induction Motor High Voltage Electric Motors IEC GB

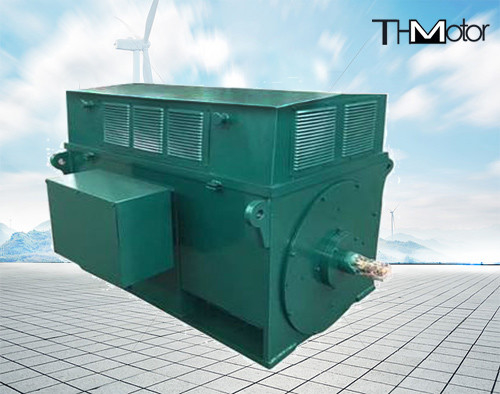

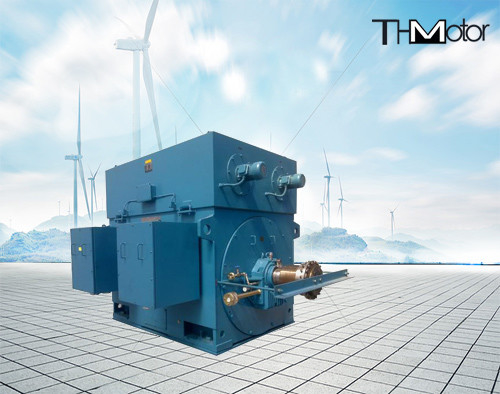

Ykk500-6 900kw High Voltage Electric Motors Electric Induction Motors​

Product overview

YK series high-speed high-voltage motors are large three-phase asynchronous motors. The working environment temperature is 0C~40℃, and the altitude does not exceed 90%. The insulation grade of the motor winding is F grade. Reliable performance in a variety of conditions. The windings are soaked in VPI vacuum and have a long service life. The allowable temperature rise of the motor is 80K.

The motor has two shaft extension ends, and either end can be used to drive the supporting machinery. An absolute current is generated between the bearing at one end of the motor and the base plate.

This series of products are made of exquisite materials and well-made, with high efficiency and energy saving, low noise, low vibration, reliable operation, and convenient use, installation and maintenance.

Model description
The motor model is composed of three parts: product code, specification code, and environmental code. The product code is represented by the motor series code, and the meanings are as follows:
YK-large high-speed high-voltage three-phase asynchronous motor.
The specification code is composed of power, number of poles, and outer diameter of stator punching pieces.

The main technical parameters
Rated voltage: 3KV , 6KV , 10KV
Rated frequency: 50HZ/60hz
Insulation class: F class (temperature rise is assessed according to B class)
Working system: S1 continuous working system
Ambient temperature: -15℃～+40℃
Altitude: no more than 1000 meters

Frame number: 355-1000
Power: 160KW-2500KW
Number of poles: 2P, 4P, 6P, 8P, 10P, 12P
Voltage: 6KV, 10KV or other different voltages
Protection class; IP44, IP54, IP55
Insulation class: F, H
Installation method: IMB3, IMB35

Product specifications

Each series of motors

Our aftersales service

Product packaging

Certifications
