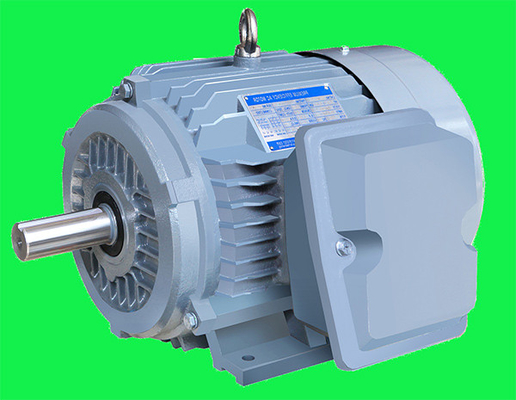

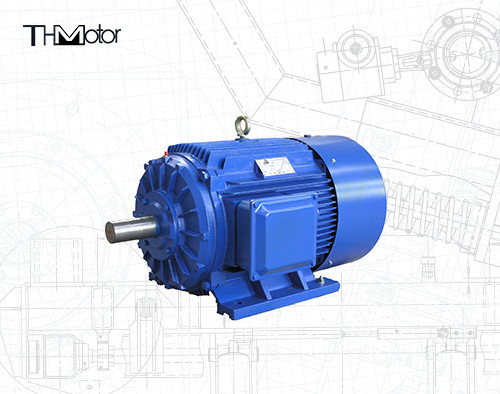

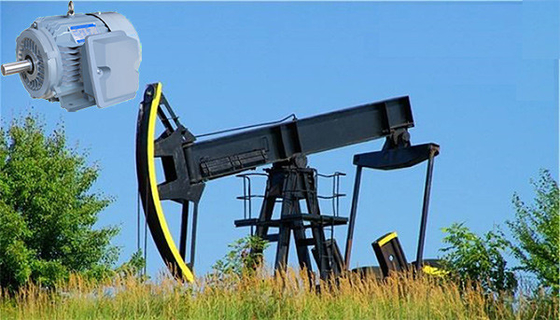

NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump

NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump

NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: UL
Model Number: NEP 256TC
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD 300-10000
Packaging Details: Seaworthy packing
Delivery Time: 30DAYS
Supply Ability: 5000SET/YEAR
مخاطب
توضیحات محصول جزئیات
Power Range: 1-260hp Frequency: 60hz
IP rate: IP55 Standard: UL
Mounting: B3,B5,B35 Frame: 140-440
voltage: 230/460v,575v Efficiency: NEMA premium
poles: 2,4,6 Enclosure: TEFC
Service Factor: 1.15
برجسته کردن:

NEMA premium high slip induction motor,high slip induction motor IP55,High Torque Induction Motor IP55

,

high slip induction motor IP55

,

High Torque Induction Motor IP55



NEMA ND series high slip induction motor for oil well pump,high torque

Features:
1. Service Factor: 1.15
2. Design: High Torque “D”
3. Protection Degree: IP55
4. Enclosure: TEFC Rigid cast iron construction and junction box
5. High slip: 5-8%
6. Corrosion resistant epoxy coated
7. F2 assembly standard (convertible to F1)
8. Rated 208-230/460V 60Hz up to 405T, 230/460V 60Hz for 444T and up, 230/460/796V 60Hz is available
9. VPI process applied for best electrical performance
10. Double delta/delta connection (12 leads)
11. Steel fan guard
12. Oversized regreasable bearings on both ends
13. Double drilled feet
14. Drainage holes at motor’s lowest point
15. Grounding terminal inside junction box and on frame
16. PTC thermistors in windings
17. CSA-US approved and CE marked

Product specifications

FRAME AJ AK BA MIN
BB		 BC MAX
BD		 NUMBER
OF HOLE		 SCREW DEPTH
OF HOLE		 U AH R ES S
182TC.184TC

213TC.215TC

254TC.256TC

284TC.286TC		 7.250

7.250

7.250

9.000		 8.500

8.500

8.500

10.500		 3.50

3.50

4.75

4.75		 0.25

0.25

0.25

0.25		 0.12

0.25

0.25		 9.00

9.00

10.00		 4

4

4		 1/2-13

1/2-13

1/2-13		 0.75

0.75

0.75		 1.125

1.375

1.625		 2.62

3.12

3.75		 0.986

1.201

1.416		 1.78

2.41

2.91		 0.250

0.312

0.375
0.25 11.25 4 1/2-13 0.75 1.875 4.38 1.591 3.28 0.500
324TC.326TC 11.000 12.500 5.25 0.25 0.25 14.00 4 5/8-11 0.94 2.125 5.00 1.845 3.91 0.500
365TC 11.000 12.500 5.88 0.25 0.25 14.00 8 5/8-11 0.94 2.375 5.62 2.021 4.28 0.625
404TC.405TC 11.000 12.500 6.62 0.25 0.25 15.50 8 5/8-11 0.94 2.875 7.00 2.450 5.65 0.750
444TC.445TC 14.000 16.000 7.50 0.25 0.25 18.00 8 5/8-11 0.94 3.375 8.25 2.880 6.91 0.875



Each series of motors
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump 0

Our aftersales service
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump 1

Product packaging
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump 2

Certifications
NEMA Premium High Torque High Slip Induction Motor IP55 For Oil Well Pump 3
