YPT Series asynchronous servo Ac Motor IP23 IC06

YPT Series asynchronous servo Ac Motor IP23 IC06

YPT Series asynchronous servo Ac Motor IP23 IC06
YPT Series asynchronous servo Ac Motor IP23 IC06
YPT Series asynchronous servo Ac Motor IP23 IC06
جزئیات محصول:
Place of Origin: China
نام تجاری: THMotor
گواهی: CE
Model Number: YPT
مخاطب
توضیحات محصول جزئیات
Power: 7.5kw - 1250KW Voltage: 380V/660V
Motor Frame: H160-H355 Speed: 500RPM/750RPM/1000RPM/1500RPM
Protection Degree: IP23 Cooling method: IC06
برجسته کردن:

IP23 asynchronous servo Ac Motor,IC06 asynchronous servo Ac Motor

,

IC06 asynchronous servo Ac Motor

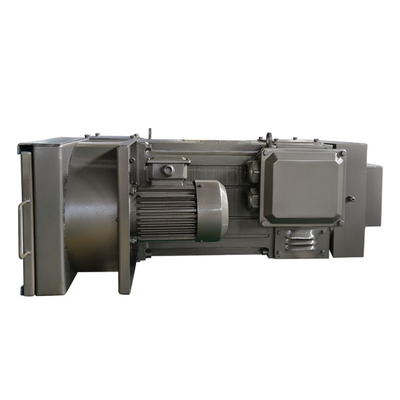

YPT Series asynchronous servo Ac Motor IP23 IC06



Product overview



The YPT series variable frequency speed regulation three-phase asynchronous motor is specially designed to cooperate with various high-performance IGBT pulse width modulation frequency converters at home and abroad. This series of motors has the characteristics of low noise, small vibration, wide speed range, and novel appearance. The performance indicators of the motors have reached the level of the 1980s in foreign countries, and their basic technical conditions comply with the international and national standards of IEC34-1 and CB755.



Product specifications



Type
Rated
Output
Rated
Current
Rated torque
rated speed
Rated frequency
short-time overload
Moment of inertia
weight
fan power
Motor voltage
  Kw A NM RPM Hz 倍 kg.m2 Kg Kw V
YPT355S-4 315 549 4011 750 25 2.8 16.246 2970 5.5 380
YPT355M-4 355 611 4520 2.8 18.934 3120
YPT355L-4 400 689 5093 2.6 21.54 3270
YPT355K-4 500 864 4775 1000 33.3 2.5 13.8 2895
YPT355S-4 560 967 5348 2.6 16.2 2970
YPT355M-4 630 1081 6016 2.6 18.93 3120
YPT355L-4 710 1215 6780 2.6 21.54 3270
YPT355X-4 800 1366 7640 2.6 23.2 3420
YPT355S-4 630 1050 4011 1500 50 3 16.246 2970
YPT355M-4 710 1195 4520 2.8 18.934 3120
YPT355L-4 800 1330 5093 2.6 21.54 3270









Each series of motors

YPT Series asynchronous servo Ac Motor IP23 IC06 0



Our aftersales service

YPT Series asynchronous servo Ac Motor IP23 IC06 1



Product packaging

YPT Series asynchronous servo Ac Motor IP23 IC06 2



Certifications



YPT Series asynchronous servo Ac Motor IP23 IC06 3
